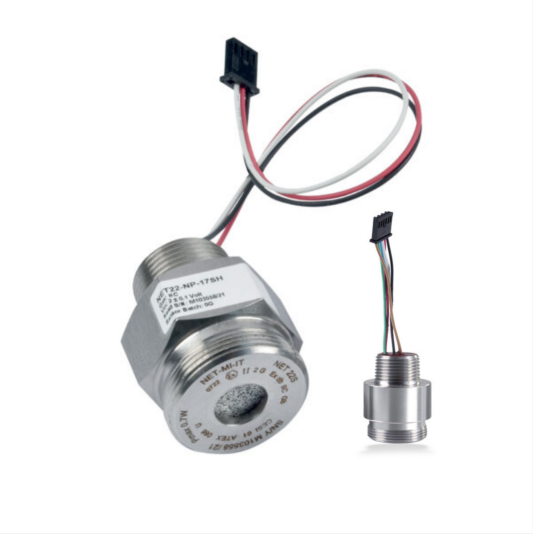

NET2X/NETC2 HEADS

Ready-made gas detector Head or Housing for 20mm (4-Series) gas sensor, certified as a Component or as a complete Device.

NET2X/NETC2

The N.E.T. 2X and C2 sensor enclosures are ready–to–use detector heads or gas sensor housings, already certified as a Component or a complete Device to be mounted on a gas detector in any environment.

The N.E.T. detector head is the ideal solution for gas detection system manufacturers who prefer not to invest in designing their own detection head and/or obtaining ATEX/IECEx/UL_CSA certification for it. NET2X/NETC2 can house 20mm (4-series) size sensors from N.E.T.’s full array of detection technologies.

It is a completely sealed device, designed to be fully replaced at the end of the product’s life.

The single sensing element is not removable or accessible.

The user can select among ¾” or 1” thread for connection to the detector’s main body. An additional M35 front thread allows easy fit for selected accessories (splash guard, calibration cap and additional filter for GD protection). The flameproof enclosure is equipped with an integral stainless steel sinter filter guaranteeing safe entry of the atmosphere being detected. NET2X has been tested and certified according to the ATEX directive as a component to be integrated in a fixed gas detection system. NETC2 heads have been tested and full-conformity certified as complete instruments according to ATEX/IECEx/UL_CSA Standards.

Download Centre: Data Sheets

Datasheets

NET2X
NETC2

Certificates

ATEX component - NET2X
ATEX full conformity - NETC2
IECEx full conformity - NETC2
UL/CSA 60079-1 - NETC2
RoHS Conformity Declaration
