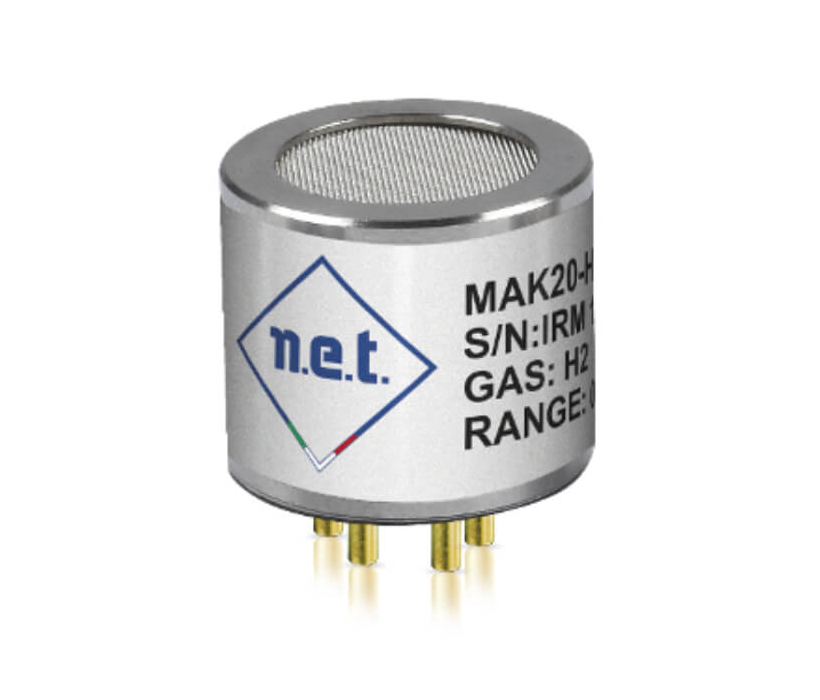

With the application of MEMS (Micro Electronic Mechanical Systems) technology, N.E.T. is making the power of thermal conductivity Gas sensors available for the broadest range of Hydrogen detection applications. By employing very repeatable, high-volume CMOS (Complementary metal-oxide-semiconductor) MEMS technology, the new N.E.T. KATHAROMETER GAS TECHNOLOGY is lowering production costs and the typically high power consumption of thermal conductivity gas sensors. MAK sensors detect Hydrogen concentrations in the air by measuring the change in thermal conductivity of the Gas mixture. Thermal conductivity sensors are most effective when detecting Gasses with low molecular weight, which correspond to greater thermal conductivity. Hydrogen possesses the highest thermal conductivity of all known gasses. The N.E.T. MAK Intelligent Hydrogen sensor features a standard 4-series size and pinout, with negative or positive pinout and voltage or optional bridge output – dramatically reducing the integration on existing detectors and platforms developed for classic NDIR sensors. Unlike catalytic bead sensors, N.E.T. MAK sensors covers the broadest range of detection, working well from ppm level, up until 100 % volume. This is because they can operate without the presence of Oxygen. They also provide far better long-term stability than sensors that are triggered by chemical reactions that eventually cause the sensor to degrade. Thermal conductivity Gas sensors, in fact, do not involve physical or chemical changes in the sensor. This, coupled with outstanding resistance to poisoning, results in far greater operating lives than for traditional technologies. N.E.T. MAK MEMS-membrane-based sensor offers a far greater resistance to mechanical shocks when compared to catalytic or traditional thermal conductivity sensors. Another key factor is the fast response time of the sensor (T90 < 20), the only limiting factor being the time required for changes in the measurement resistor.
N.E.T. TECHNOLOGIES
Innovative Gas Sensing. By constant research and innovation, NET has developed distinctive and unique technologies. Incorporated every day in our products, that enable exceptional benefits for our users.
Here: N.E.T. Technologies
MAC 20
KATHAROMETER TECHNOLOGY
MAC 20
MICROPROCESSOR GAS TECHNOLOGY
Detectable gases: MAK 20mm
• Hydrogen (0-100% LEL, 0-4% Vol)
