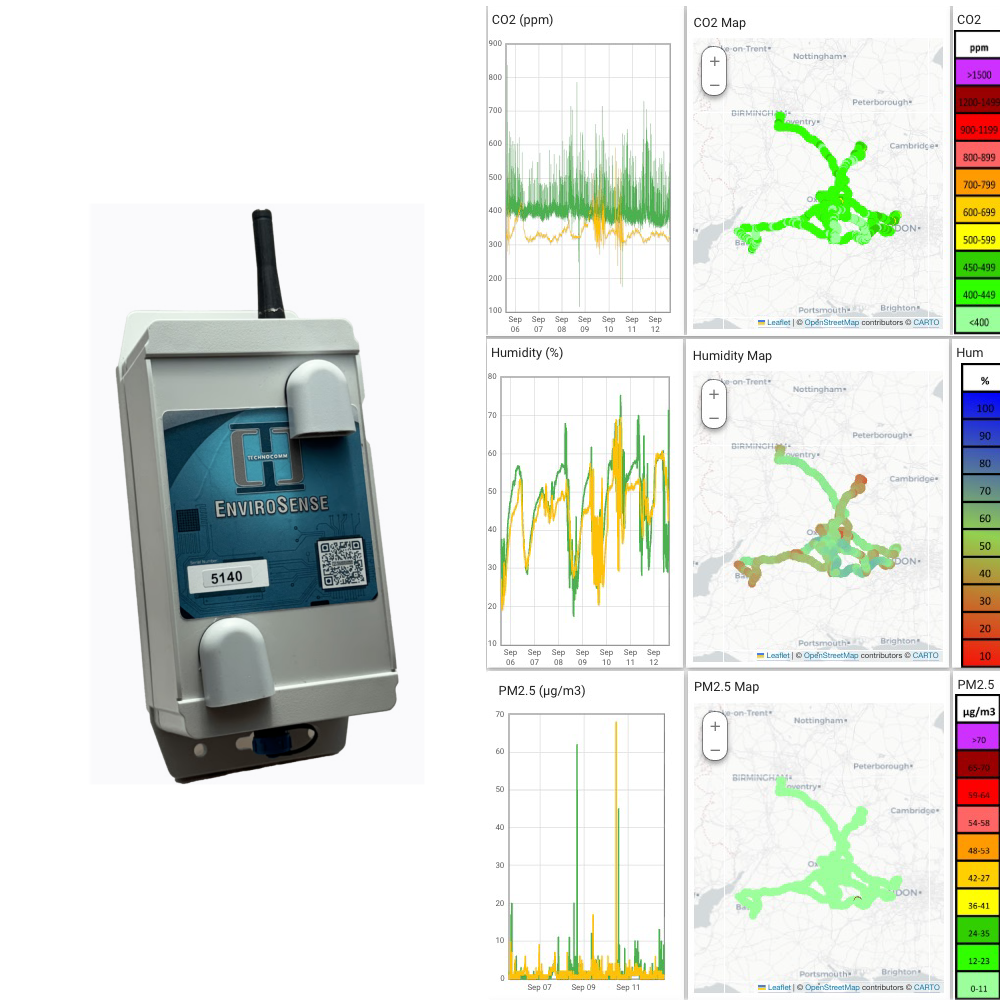

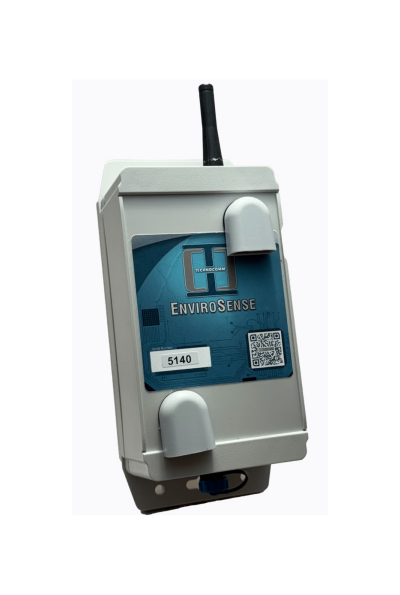

EnviroSense

Configurable Options
• Carbon Dioxide (CO2)

• Particulate Matter (PM10, PM2.5)
• Volatile Organic Compounds (VOC)
• Hydrogen Sulphide (H2S) and Methane (CH4) options

EnviroSense AI

Full configuration - Air Quality Sensors:
• Carbon Monoxide (CO)
• Sulphur Dioxide (SO2)
• Nitrogen Dioxide (NO2)
• Ozone (O3)
• Particulate Matter (PM10, PM2.5)

EnviroSense AI - Ambient Air Quality Sensor (Specifications)

AQ7ND Nitrogen Dioxide Gas Sensor

Technology: 4-electrode electrochemical
Measurement Range: 0 to 1 ppm NO2
Maximum Overload: 5 ppm NO2
Onboard Filter: to remove Ozone
Sensitivity*: 550 nA/ppm ±250 nA/ppm
Response Time (T90): < 120 seconds
Resolution*: (when using recommended electronics) 5 ppb
Baseline Offset*: <±100 nA
Repeatability*: < ±5 % of signal
Linearity**: linear
Low Detection Limit*: 5 ppb

AQ7SO2 Sulphur Dioxide Gas Sensor

Technology: 4-electrode electrochemical
Measurement Range: 0 to 1 ppm SO2
Maximum Overload: 5 ppm SO2
Onboard Filter: None
Sensitivity*: 900 nA/ppm ±300 nA/ppm
Response Time (T90): < 60 seconds
Resolution*: (when using recommended electronics) 2 ppb
Baseline Offset*: <±200 nA
Repeatability*: < ±5 % of signal
Linearity**: Linear
Low Detection Limit*: 5 ppb

AQ7CO Carbon Monoxide Gas Sensor

Technology: 4-electrode electrochemical
Measurement Range: 0 ppm to 20 ppm CO
Maximum Overload: 50 ppm CO
Onboard Filter: to remove SOx/NOx/H2S and O3
Sensitivity*: 375 nA/ppm ±125 nA/ppm
Response Time: (T90): < 60 seconds
Resolution*: (when using recommended electronics) 10 ppb
Baseline Offset*: <±200 nA
Repeatability*: < ±3 % of signal
Linearity**: Linear
Low Detection Limit*: 40 ppb

AQ7OZ Ozone Gas Sensor

Technology: 4-electrode electrochemical
Measurement Range: 0 to 1 ppm O3
Maximum Overload: 5 ppm O3
Sensitivity*: 500 nA/ppm ±200 nA/ppm
Response Time (T90): < 120 seconds
Resolution*: (when using recommended electronics) 5 ppb
Baseline Offset*: <±100 nA
Repeatability*: < ±5 % of signal
Linearity**: Linear
Low Detection Limit*: 5 ppb

* Specifications are based on measurements made with cylinder gases using a flow rate of 500 ml/min and are valid at 20°C, 50 %RH and 1013 mBar using Honeywell recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first three months. Output signal can drift below the lower limit over time.

** Linear through the concentration range across the whole operational environment range.
