HVAC - INDUSTRIAL REFRIGERATION AND REFRIGERANT GAS LEAK DETECTION

N.E.T. offers the most complete range of solutions for refrigerant gas leak detection for the Refrigeration and HVAC Industries

HIGHLIGHTS
Most of the gases used in refrigeration systems are, in fact, dangerous to humans:

• A2L Gases, The new class of lower Global Warming Potential HFO refrigerants, collectively referred to as “A2L” (per their ISO 817-2024 Refrigerants — Designation and Safety Classification), in many cases, possess some level of Flammability.

• Carbon Dioxide (CO2) Is Toxic and displaces Oxygen, affects respiratory capacity and can cause asphyxiation

• Ammonia (NH3) is Toxic and Flammable and also lethal at high concentrations. Its use is subject to EN 378:2008

• Hydrocarbons (HC) such as Butane and Propane are flammable, and their use is subject to EN 378:2008

• Fluorinated Gases, often referred to as “F Gas” (CFCs, HCFCs, HFCs, HFOs), displace Oxygen causing asphyxiation however, these Refrigerant Gases cause serious environmental impact. CFCs have, in fact, been phased out and they’re not commercially available today even though older plants may still have them in their systems.

IRNET-PRO 32mm

NDIR Sensors for Carbon Dioxide

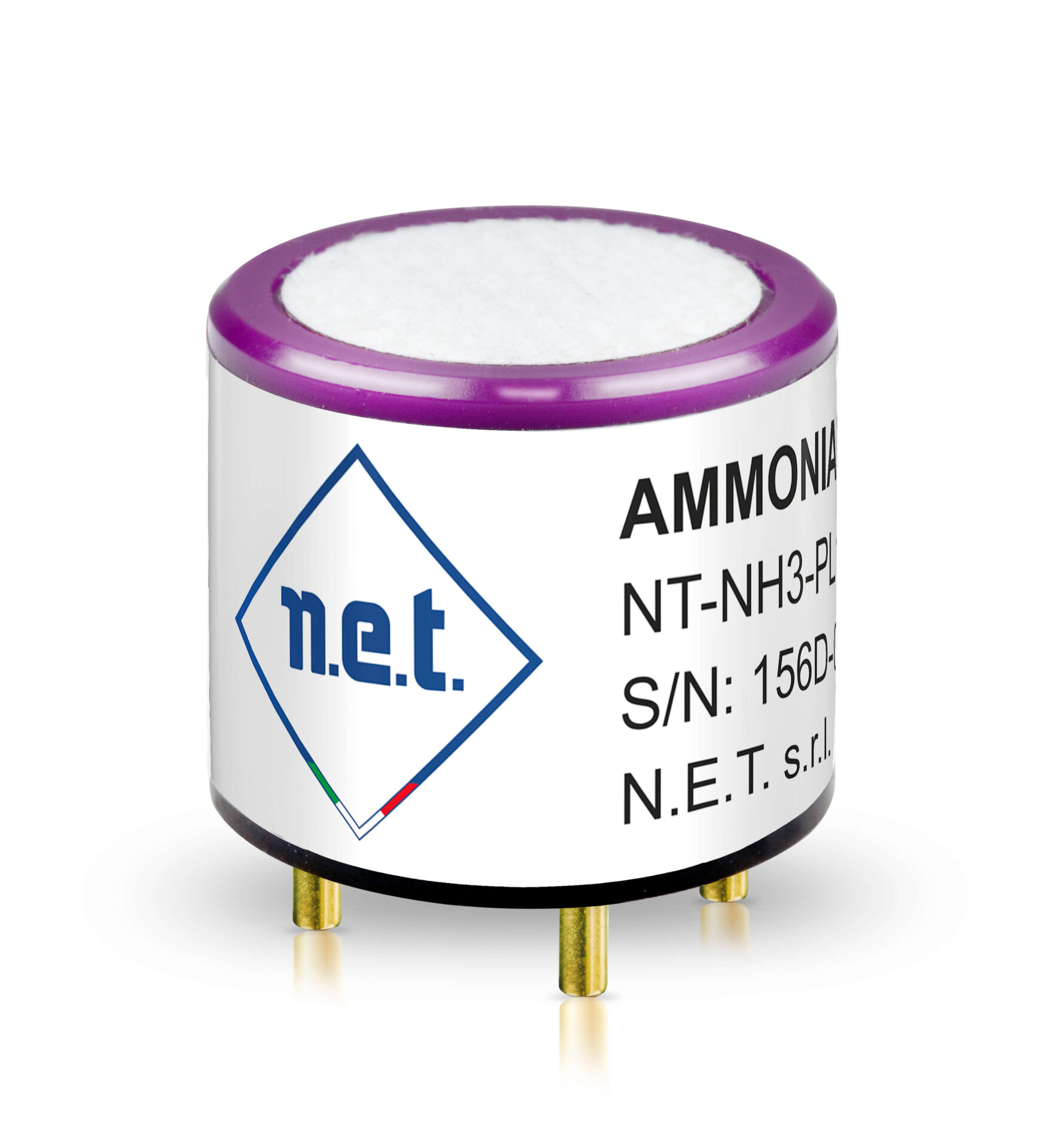

NT-NH3-PL1000

Premium Line Electrochemical Sensor for Ammonia

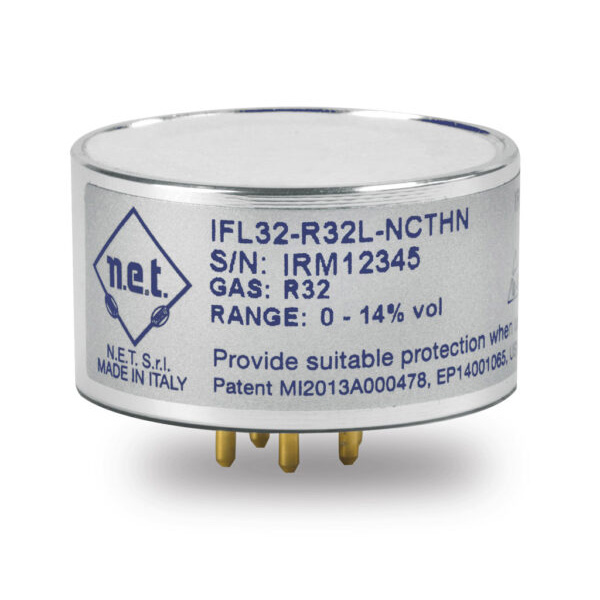

IREF-LITE

Very cost-effective NDIR sensors for Refrigerant Gas leak detection

IREF-PRO

Comprehensive range of NDIR sensors for Refrigerant gases

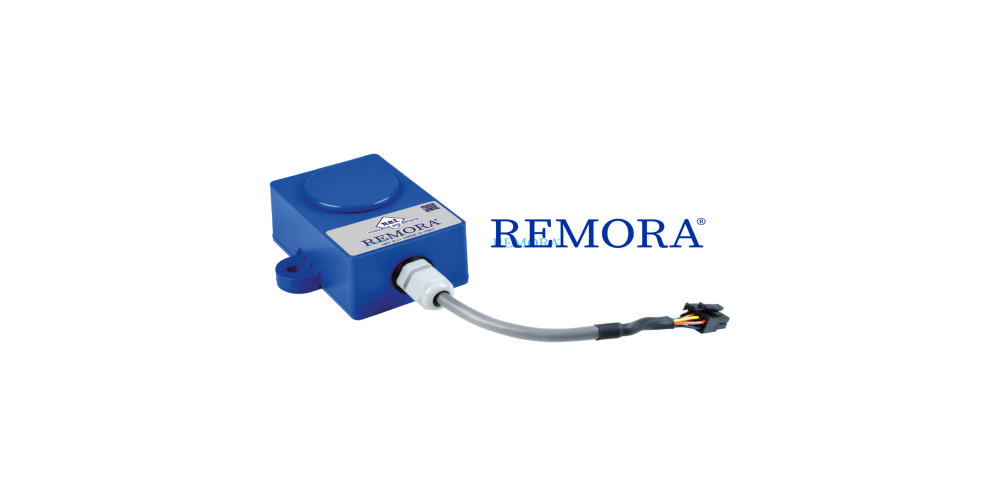

REMORA Series

Complete Packaged Instruments for Refrigeration Equipment Manufacturers

The IREF sensors, based on N.E.T. patented Non-Dispersive Infrared (NDIR) gas technology, brings you the most extensive range of detectable refrigerant gases:

• R-1233zd

• R-1234yf

• R-1234ze

• R-125

• R-134a

• R-143a

• R-22

• R-227ea

• R-290

• R-32

• R-404a

• R-407a

• R-407c

• R-407f

• R-417a

• R-422a

• R-422d

• R-424a

• R-427a

• R-434a

• R-438a

• R-448a

• R-449a

• R-452a

• R-452b

• R-454a

• R-454b

• R-455a

• R-507

• R-513a

• R-600

• R-744

• R-453a

• R-442a

• R-450a

Refrigerant Gas leak detection is becoming increasingly important in the industrial and commercial refrigeration business. Concerns for financial aspects, personnel health and safety, climate and environment are having contractors and facility managers searching more than ever for dependable gas detection systems.

Leaking refrigeration systems not only determine losses on increasingly expensive gases that will have to be reintegrated, but pose serious risks for the personnel involved (as most refrigerants are toxic, explosive or may cause oxygen depletion) and the environment (due to their global warming and ozone depletion potential). Leakages may also result in damaged stored goods and fines related to existing laws and regulation.

Growing concern about climate change has been mounting pressure to reduce the use of high-GWP refrigerants across many applications and industries for years. In response, all 197 member countries agreed in 2016 to amend the Montreal Protocol to phase down hydrofluorocarbons (HFCs). On Oct. 16, 2016, the Kigali Amendment to the Montreal Protocol was passed, paving the way for the global phasedown of HFCs with specific schedules and targets.

The European Union has introduced two harmonized regulations for the refrigeration industry, the F GAS Regulation EU 517/2014 and the European Standard for Refrigeration Industry EN 378:2016. The former, legally binding and more restrictive than the Kigali Amendment, is an environmental law aiming to reduce emissions of fluorinated greenhouse gases covered by the Kyoto Protocol (as HFCs, PFCs and SF6), making leaking detection mandatory for most systems. The latter outlines requirements for construction and refurbishment of refrigeration systems, explicitly mandating the presence of gas detection systems under given conditions.
