N.E.T. NET3X/NETC3 HEADS

Ready-made gas detector head or housing for gas sensors up to 32mm diameter (standard 4 and 7 series) and available certified as a component or as a complete device.

Highlights

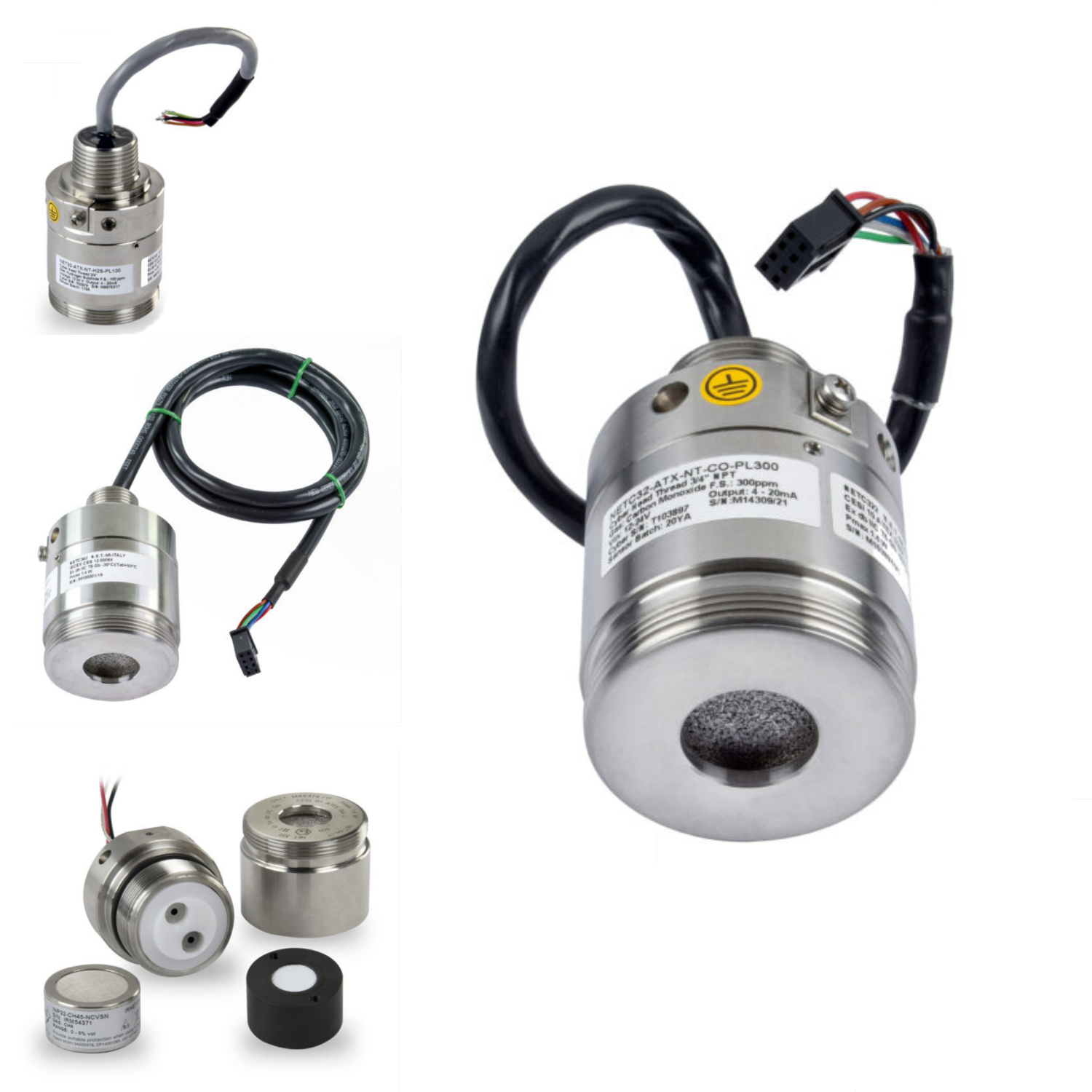

NET3X/NETC3 are ready–to–use detector heads or gas sensor housings, already certified as a component or a complete device, to be mounted on a gas detector in any environment.

The N.E.T. NET3X/NETC3 detector head is the ideal solution for gas detection system manufacturers who prefer not to invest in designing their own detection head and/or obtaining ATEX/IECEx/UL_CSA certification for it.

NET3X/NETC3 can house 20mm (4-series) or 32mm (7-series) size sensors from N.E.T.’s full array of detection technologies. The two-piece design of the housing allows the internal sensor to be field replaceable. The user can select among ¾”, 1” or M20 thread for connection to the detector’s main body. An additional M46 front thread allows easy fit for selected accessories (splash guard, calibration cap and additional filter for GD protection).

The NET3X/NETC3 flameproof enclosure is equipped with an integral stainless steel sinter filter guaranteeing safe entry of the atmosphere being detected. NET3X has been tested and certified according to the ATEX directive as a component to be integrated in a fixed gas detection system. NETC3 heads have been tested and full-conformity certified as complete instruments according to ATEX/IECEx/UL_CSA standards. The NET3X/NETC3 enclosure is available also in aluminium.

Download Centre: Data Sheets

Data Sheets
NET3X
NETC3

Certifications

ATEX component - NET3X
ATEX full conformity - NETC3
IECEx full conformity - NETC3
UL/CSA 60079-1 - NETC3
RoHS Conformity Declaration
